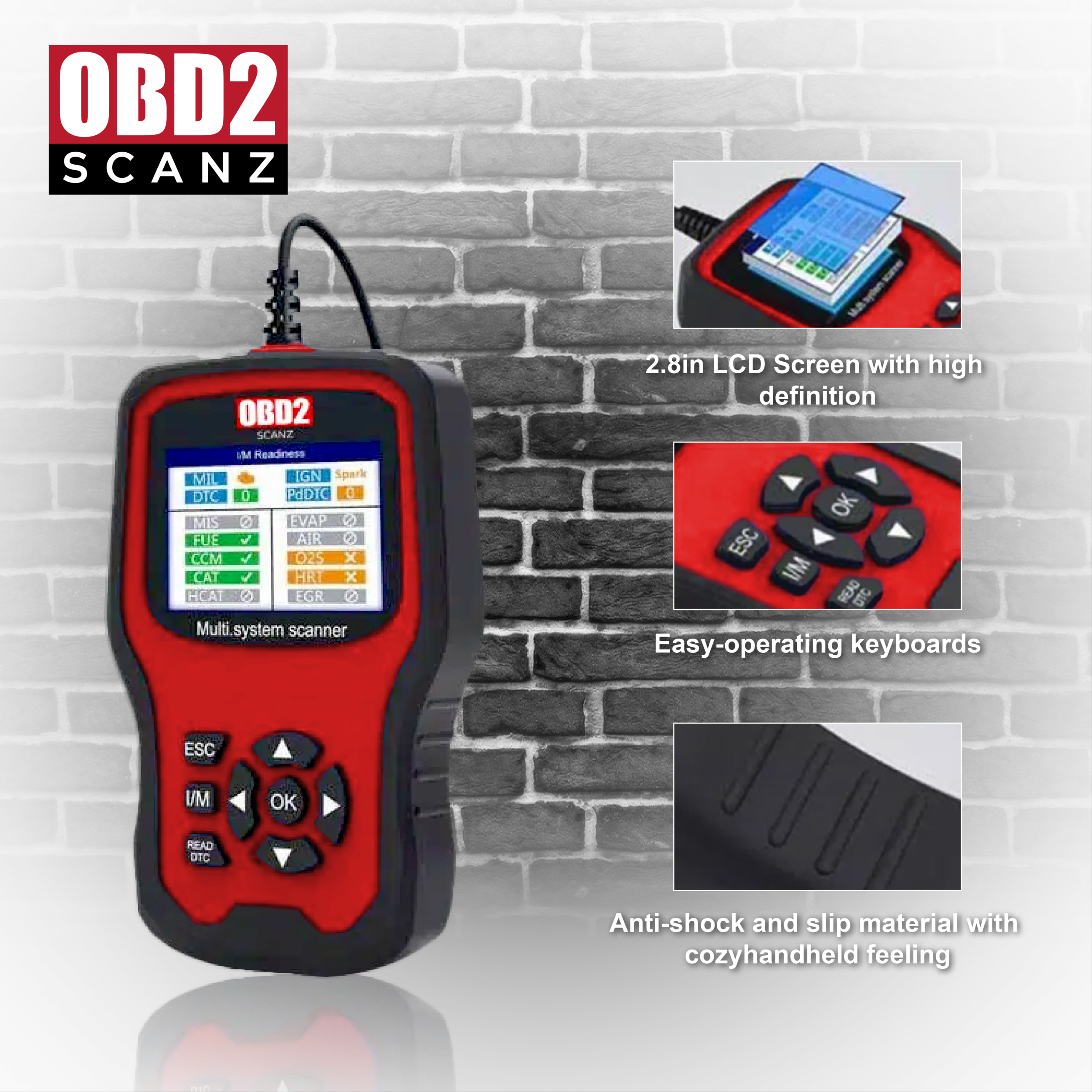

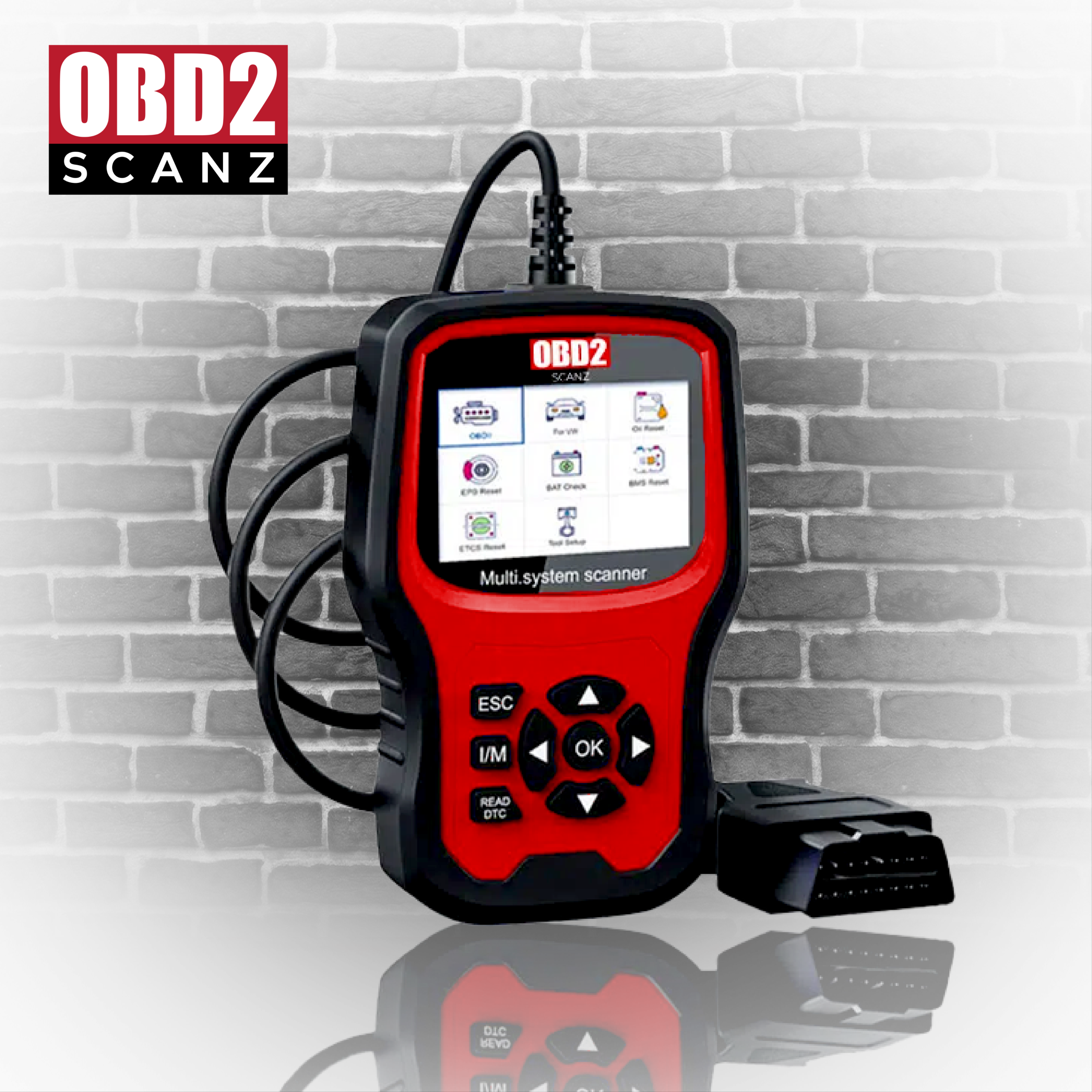

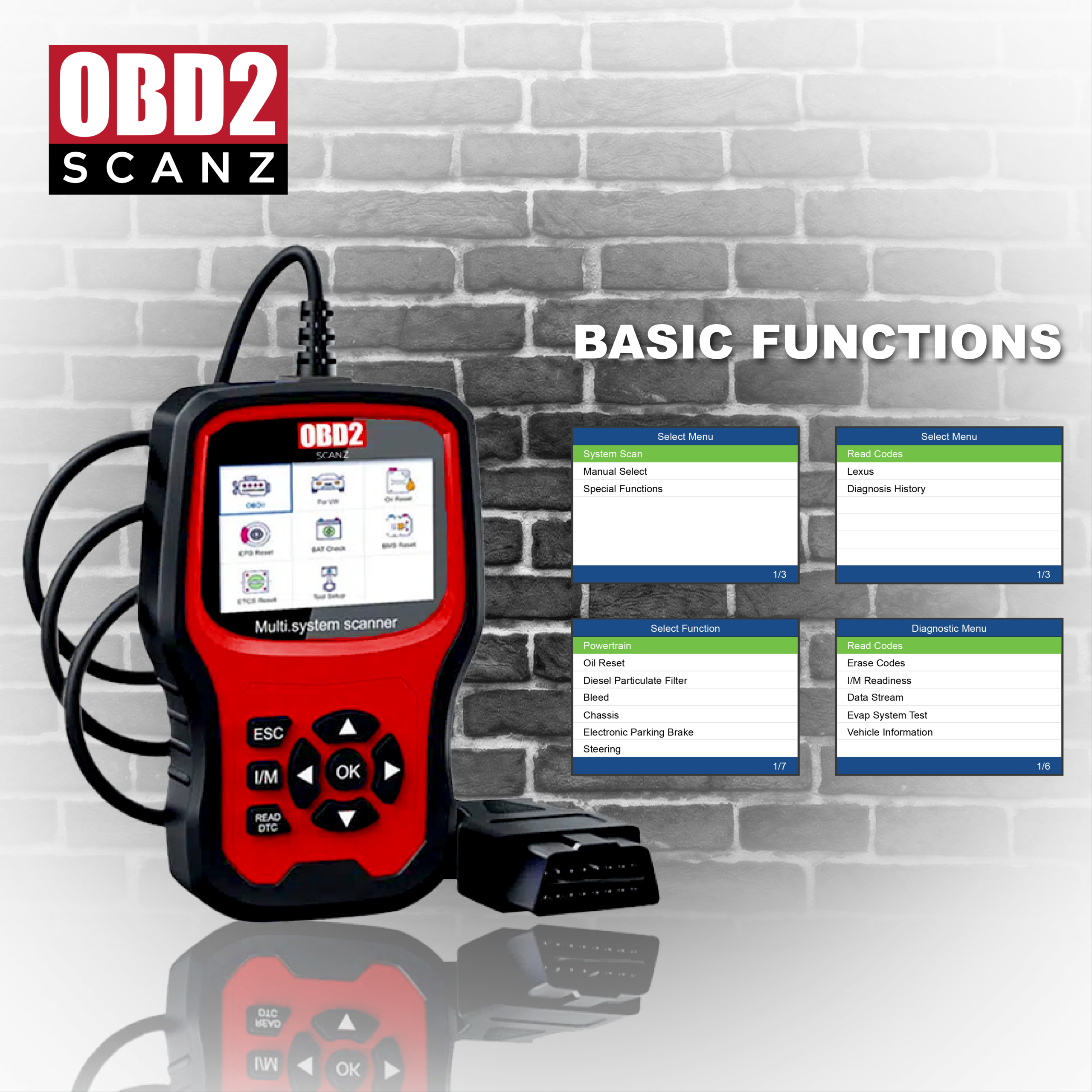

Mercedes Full System Scan Tool
Mercedes Full System Scan Tool - Image 2
Mercedes Full System Scan Tool - Image 3
Mercedes Full System Scan Tool - Image 4
ALL SCANNERS

Mercedes Full System Scan Tool

$239.00

The Mercedes Full System Scan Tool will allow you to access most of the functions and diagnose problems on most Mercedes vehicles like a professional. It allows you to access engine, transmission, ABS and all other systems for faults.

  • Stand-Alone Unit – Plug & Play
  • Retrieve most Fault Codes & Clear Check Lights*
  • Works with most Mercedes vehicles*
  • Special Functions*
  • Works with other brands (must be OBD2 compliant) as a basic engine scanner
  • Clear & Reset Service Reminders*
  • Easy To Read Colour Screen
  • Professional Level Scan Tool
  • Rugged Design, Built Tough
  • Lifetime Free Updates
  • Easy To Use
  • 12 Month Warranty
  • Australian Support
IMPORTANT: See product limitations below BEFORE purchase
SKU: FST770 Categories: ,

Description

Work on your Mercedes like a professional with the Mercedes Diagnostic Scanner. Must have for any Mercedes owner! Allowing you to scan most systems on your Mercedes for faults, check and clear these faults, run service procedures just like the dealer can.

It has an easy to read colour screen and a simple to use interface so it is easy for anyone to use. Will also work on other brands of cars for a basic OBD2 engine scan to check and clear engine faults and read data.

The Mercedes Diagnostic Scanner is an easy to use, stand alone unit that will have you scanning your vehicle like a pro within minutes. Simply, plug it into the OBD II port and the device will boot up with step-by-step instructions. This scanner has a large, easy to read colour display accompanied by a user friendly interface that requires no additional software. If you are a Mercedes owner then this is a must have tool to keep under the seat or in the glove box.

HOW TO USE THE SCANNER:

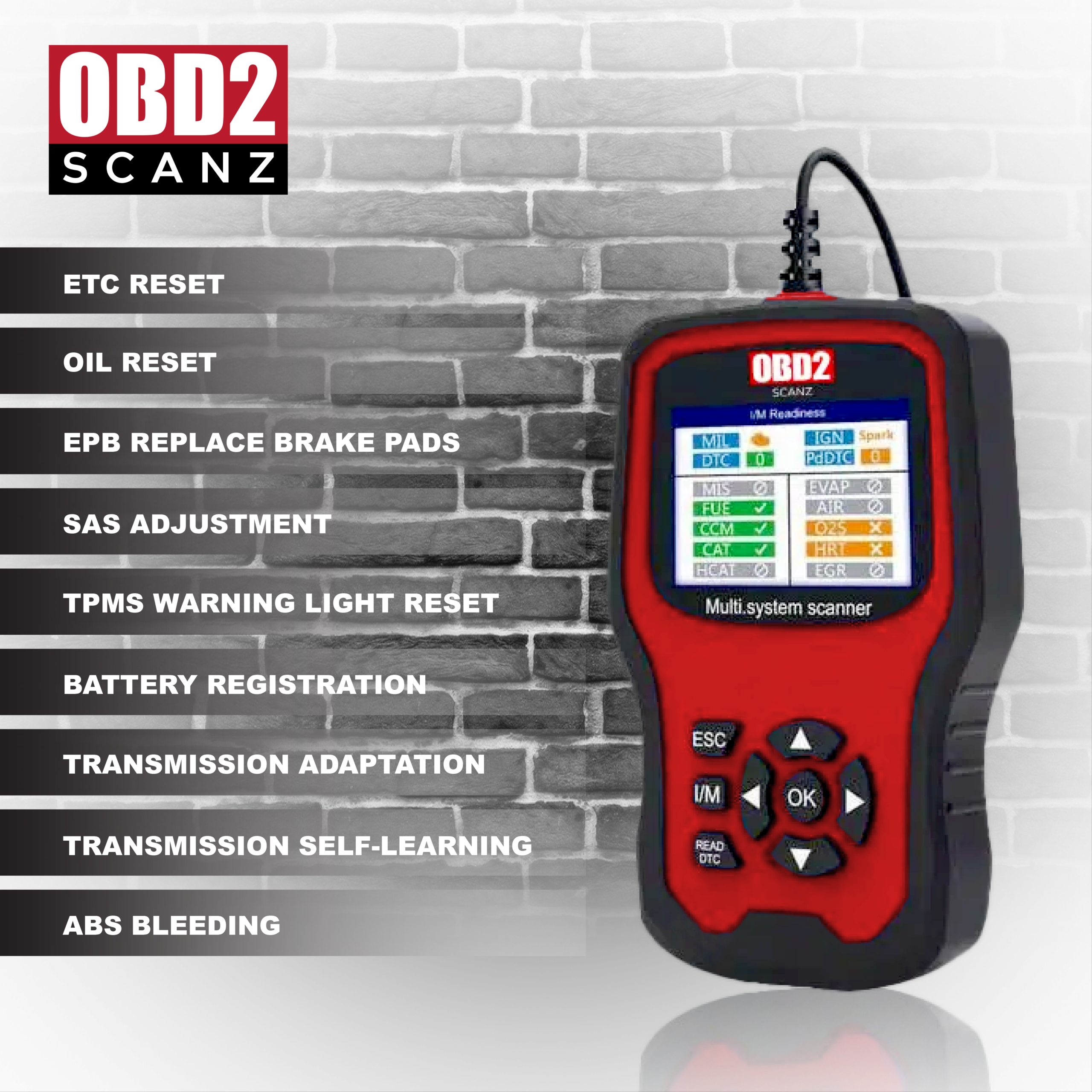

Special Features Include:

  • ETC Reset
  • Oil Reset
  • EPB replace brake pads
  • Adjustment steering-angle sensor
  • Tire pressure warning light reset (without tire pressure display)
  • Tire pressure learning (with tire pressure display)
  • Battery registration
  • Transmission adaptation
  • Transmission self-learning
  • DPF regeneration
  • DPF matching
  • Reset learned values for adBlue(R) metering
  • ABD bleeding
  • Reset fuel pump

Access most Mercedes Vehicles Modules Including:

  • Engine
  • Transmission
  • ABS
  • Airbags
  • Body Systems
  • Plus More

Kit Includes:

  • Main Unit
  • OBD 16PIN Cable
  • User Manual
  • USB Cable (For Software Updates)
  • Protective Case

Special Functions

Reset the engine oil, Carry out the CBS Reset, Exhaust emission inspection, Coolant Service Reset, Spark plugs Reset, Brake fluid Service Reset, Micro-filter Service Reset

Register the battery replacement, this is a MUST DO JOB, failing to do so may create an over charging situation, shorten the battery life and/or enable limp-home mode

Brake Pad / Shoe changes on vehicles equipped with EPB’s (Electronic Parking Brakes) MUST be carried out using a Diagnostic Tool to correctly re-calibrate. This tool will offer you that capability on supported models. De-activate to Service Position – Replace – Re-activate.

The Steering Angle Sensor (SAS) is used to measure the angle of the steering wheel and the speed at which it is being turned. The signal is mainly used by the ABS System as part of it’s stability control function but also by other systems such as ride level control and adaptive lighting. A problem with the SAS Signal will cause a fault with any of the systems that use the signal directly, or indirectly.

If the Steering Angle Sensor (SAS) needs to be changed, many vehicle’s require the new sensor to be calibrated. This tool will allow you to carry out steering angle re-calibration on supported models.

Diagnose ABS/SRS system codes, read and clear DTCs and turn off ABS/SRS warning light, retrieves ABS/SRS ECU information, etc.

Note that a forced/manual DPF regen using this scanner is only possible on vehicles that allow this function. Some vehicles do not allow a forced/manual DPF regen using third-party tools as the process will need to be done manually on the vehicle via user inputs.

Software Update File
Software Update Guide

Supported Vehicles:

CLASS
Chassis Menu
FST770 Support Year Models(OBD16PIN)
Note
A CLASS
 168-A Class(1997-2004)
169-A Class(2004-2005)
169-A Class(2006-2012)
176-A Class(2012-2018)
177-A Class(As Of 2018)
A CLASS all
AMG CLASS
 190-AMG Class
290-AMG GT Class
298-AMG Class
AMG 190/290/298 Chassis
 192 Chassis not supported (Digital authentication required)
B CLASS
 245-B Class(Up To 2005)
245-B Class(2006-2011)
246-B Class(2012-2019)
247-B Class
B CLASS all
C CLASS
 203-C Class(2000-2003)
203-C Class(2004-2008)
204-C Class(2008-2014)
205-C Class(2014-2020)
C CLASS 2000-2020
 W206（2021-）not supported (Digital authentication required)
CL CLASS
 215-CL Class(1999-2002)
215-CL Class(2003-2005)
216-CL Class(2006-2013)
CL CLASS 1999-2013
 successor model：2013-2020 is S CLASS 217 Chassis
CLA CLASS
 117-CLA Class
118-CLA Class
CLA CLASS all
CLC CLASS
 203-CLC Class(As Of 2008)
CLC CLASS all
CLK CLASS
 209-CLK Class(2002-2004)
209-CLK Class(2005-2009)
CLK CLASS 2002-2009
 successor model：After 2009 is E CLASS 207/238 Chassis
CLS CLASS
 219-CLS Class(2004-2005)
219-CLS Class(2006)
219-CLS Class(2007-2010)
CLS CLASS all
E CLASS
 207-E Class Coupe & Convertible(As Of 2009)
211-E Class(2002-2005)
211-E Class(2006)
211-E Class(2007-2009)
212-E Class(2009-2016)
213-E Class(As Of 2016)
238-E Class
E CLASS 2002-2023
 W214（2023-）not supported (Digital authentication required)
G CLASS
 461-G Class(Up To 2007)
461-G Class(As Of 2008)
463-G Class(Up To 2004)
463-G Class(2005-2006)
463-G Class(2007)
463-G Class(2008-2011)
463-G Class(2012-2017)
463-G Class(MOPF18)
G CLASS 461/463 Chassis
GL CLASS
 X164-GL Class(2006-2012)
166-GL Class(2013-2019)
GL CLASS all
 GL CLASS renamed GLS CLASS after 2019
GLA CLASS
 156-GLA Class
247-GLA Class
GLA CLASS all
GLB CLASS
 247-GLB Class
GLB CLASS all
GLC CLASS
 253-GLC Class
GLC CLASS 2015-2021
 X254（2022-）not supported (Digital authentication required)
GLE CLASS
 167-GLE Class
GLE CLASS 167 Chassis
 M/ML CLASS renamed CLE CLASS after 2014
GLK CLASS
 204-GLK Class
GLK CLASS 2008-2016
 Replaced by GLC CLASS after 2016
GLS CLASS
 167-GLS Class
GLS CLASS all
M CLASS
 292-M Class
M CLASS 292 Chassis
ML CLASS
 163-ML Class(1997-2005)
164-ML Class(2005-2011)
166-ML Class(2011-2018)
ML CLASS 163/164/166 Chassis
R CLASS
 251-R Class
R CLASS all
S CLASS
 220-S Class(1999-2002)
220-S Class(2003-2005)
221-S Class(2005-2009)
221-S Class(2010-2013)
222-S Class(2013-2020)
217-S Class(2013-2020)
S CLASS 1999-2020
 W223（2021-）not supported (Digital authentication required)
SL CLASS
 230-SL Class(2003)
230-SL Class(2004-2008)
230-SL Class(2009-2011)
231-SL Class(2012-2020)
SL CLASS 2003-2020
 R232（2022-）not supported (Digital authentication required)
SLK CLASS
 170-SLK Class(1998-2004)
171-SLK Class(2004-2005)
171-SLK Class(2006-2011)
172-SLK Class(2011-2019)
SLK/SLC CLASS all
 SLK CLASS renamed SLC CLASS after 2016
SLS CLASS
 197-SLS Class
SLS CLASS 2010-2014
SLR CLASS
 199-SLR Class
SLR CLASS 2003-2009
Maybach
 240-Maybach(Up To 2006)
240-Maybach(As Of 2007)
Maybach 240 Chassis
ED Class
 243-ED Class
EQB/EQA
EQC CLASS
 293-EQC Class
EQC

NOTICE: PRODUCT LIMITATIONS

DPF Regeneration or Reset (Diesel Particulate Filter) – Note that a forced/manual DPF regen using this scanner is only possible on vehicles that allow this function. Some vehicles do not allow a forced/manual DPF regen using third-party tools as the process will need to be done manually on the vehicle via user inputs. In this case, the scanner will only provide instructions on how to do the process manually via user inputs on the vehicle, and will not have the capability to automate the process. This is not indicative of a ‘faulty’ scanner and any return reason with such will be subject to our Returns Policy and Terms & Conditions.

Special Functions – Note that these special features and functions may not be available on all models. Please get in touch with us first to ensure supportability. We will need your model, motor, and VIN and the function you are after to determine if compatible. Returns due to a buyer’s failure to first confirm with OBD2 Scanz compatibility on this vehicle will be subject to our Returns Policy and Terms and Conditions.

Software Updates – A special and/or a standard software update is and may be required to enable some features and functions. The software update is available in Windows only. It is the responsibility of the buyer to execute and apply the software updates. A return with a reason ‘the device was not updated’ will be subject to our Return Policy and Terms and Conditions as this does not constitute a ‘faulty’ or ‘defective’ device. Video and photo proof is required for any claim of this product as not working. The video proof must clearly show and demonstrate the claim.

Feedback File – In cases where the scanner fails to perform a certain function, OBD2 Scanz will require a feedback file to be sent for analysis. Feedback files are required in order to determine the cause of incompatibility, and in order to enable the failed function. If a customer refuses to update and/or send feedback files, and forces a return for a refund, the refund will be subject to restocking fees.

This scanner only works on Mercedes vehicles with the 16pin OBD2 port only. It does NOT work with vehicles that have the 16pin port along with the 38pin round port, even with an adapter. It is imperative that you check your ports first prior to purchase of this device.

By purchasing this item, the buyer confirms to have fully understood and read the product limitations.
